TECHNICAL SPECIFICATIONS
BRACKISH WATER SERIES – MINI UNITS
💧Pure drinking water made from lakes, rivers, and wells
💧The light and portable solution
💧Easy-to-use, robust, and reliable
Water Anywhere
Solar-Powered Efficiency
Plug & Play Simplicity
Built to Last

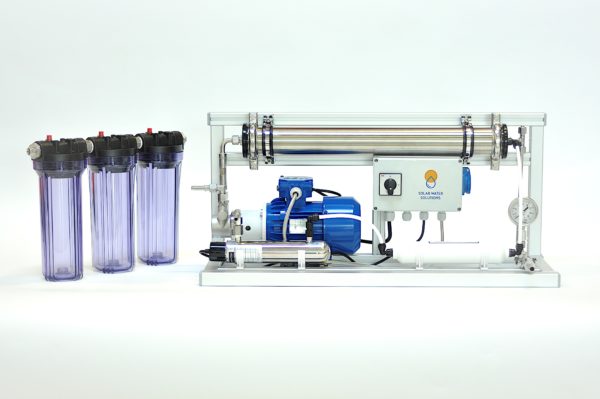

Mini 75
- Clean drinking water production from freshwater 75 L/h, and from 0.6% saline brackish water 40 L/h
- CE certification
- Marine-grade aluminum frame
- Can operate continuously the whole day
- Low energy consumption
- Silent run (<54 dB from 1 m distance)
- Easy to install, automatic plug & play system
- Chemical-free purification
Technical Specifications, Mini 75
| Product water flow | 75L/h — 40L/h |
| Feed water | Freshwater — Brackish |
| Feed water TDS | 500 mg/L — 6000 mg/L |
| Feed water temperature | 18°C |
| Salt rejection | 99 % |
| Motor | 180 W / 12 VDC / 24 VDC |
| Pump | Rotary vane |
| System pressure | 9–12 bar, automatically self adjusting |
| Pressure vessel | 1 x 2521, stainless steel 316L |
| Membrane | 1 x 2521, polyamide |
| RO piping | Stainless steel 316L |
| Pre-filter | 3 x 10” (100μm, 50μm, 5μm PP filter) |
| Pre-filter casing | 3 x 10″ PVC |
| Premate post treatment | 1 x Activated Carbon, Ultraviolet |
| UV lamp life span | 9000 hours |
| Premate quality | 100 % disinfected |
| PV panels recommended | 2 x 250–275 Wp / <37 Voc |
| Dimensions | L=78cm, W= 27 cm, H= 36 cm |
| Weight | 18 kg |

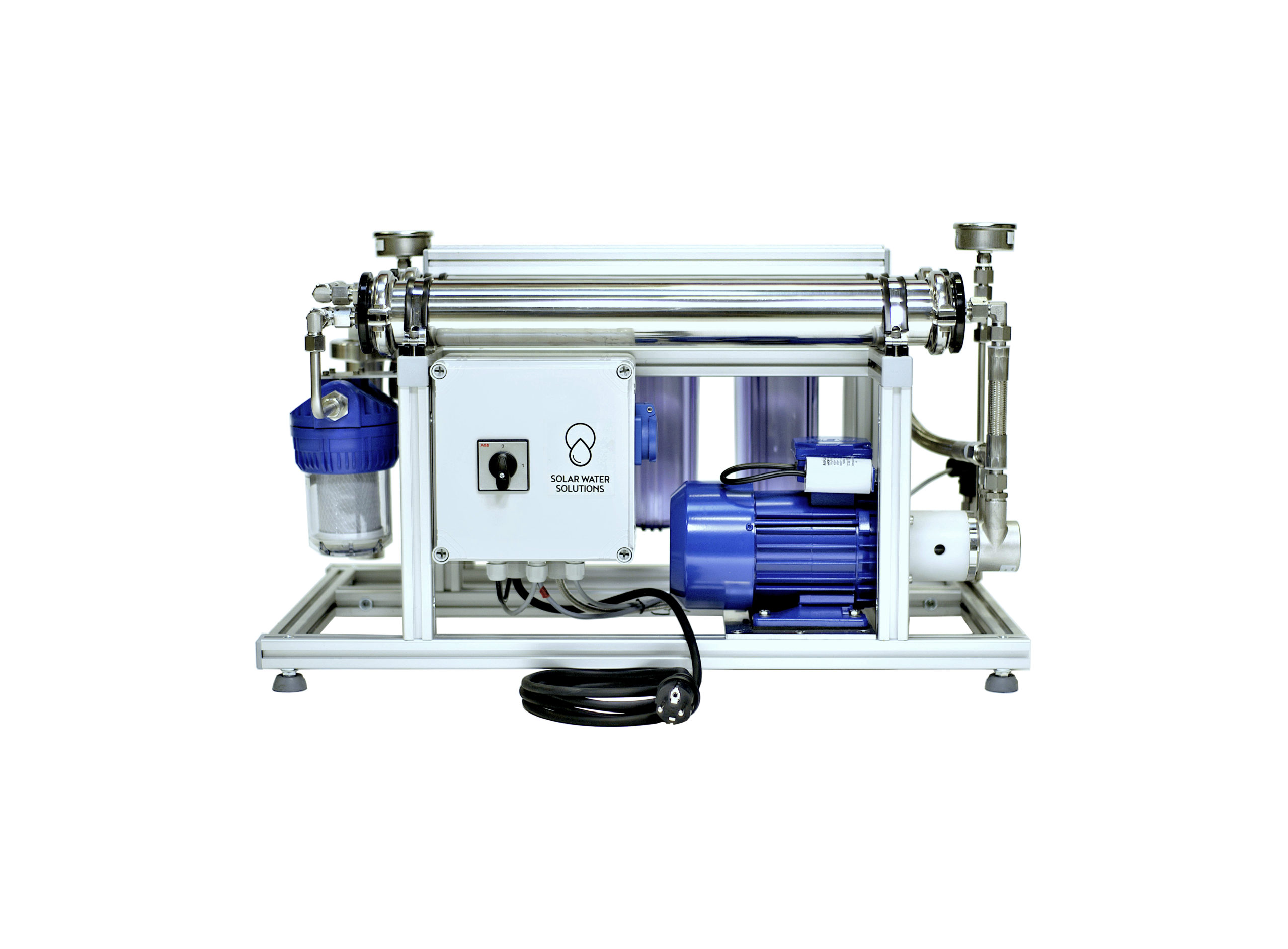

Mini 150
- Clean drinking water production from freshwater, 150 L/h, and from 0.6% saline brackish water, 60 L/h
- CE certification
- Marine-grade aluminum frame
- Can operate continuously the whole day
- Low energy consumption
- Silent run (<54 dB from 1 m distance)
- Easy to install, automatic plug & play system
- Chemical-free purification
- Dry run protection
Technical Specifications, Mini 150
| Product water flow | 150L/h — 60L/h |
| Feed water | Freshwater — Brackish |
| Feed water TDS | 500 mg/L — 6000 mg/L |
| Feed water temperature | 18°C |
| Salt rejection | 99 % |
| Motor | 370 W/230 VAC or 300 W/24 VDC |
| Pump | Rotary vane |
| System pressure | 9–12 bar, automatically self adjusting |
| Pressure vessel | 2 x 2521, stainless steel 316L |
| Membrane | 2 x 2521, polyamide |
| RO piping | Stainless steel 316L |
| Pre-filter | 3 x 10” (5μm, 50μm ,100μm PP filter) |
| Pre-filter casing | 3 x 10″ PVC |
| Premate post treatment | 1 x 5” 5μm 800mg Activated Carbon, Ultraviolet |
| UV lamp life span | 9000 hours |
| Premate quality | pH 6.5–8.5, 100% disinfected |
| PV panels recommended | 4 x 250-275 Wp / <37 Voc |
| Dimensions | L=77cm, W= 45 cm, H= 44 cm |
| Weight | 28 kg |
